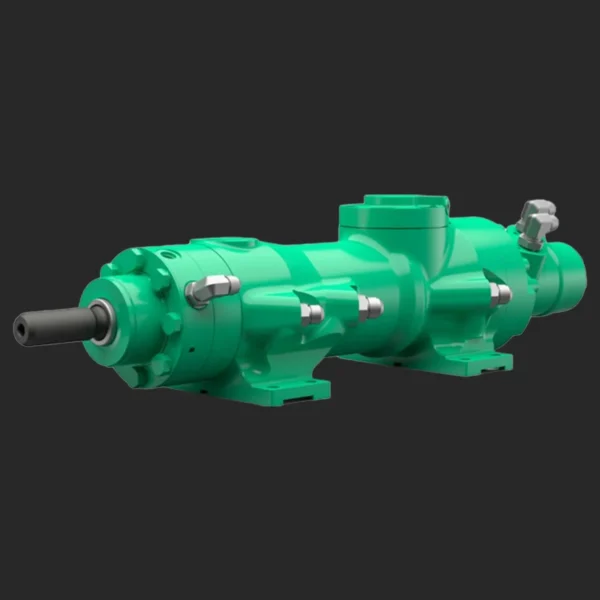

HC25 Drifter is a high-performance enhanced universal heavy-duty New Original Hydraulic Rock Drill. It’s engineered for mid-to-high-end jumbo drill rigs, leading efficient, stable, and heavy-duty drilling operations in large-scale mining, deep tunneling, and open-pit quarries.
| Dimensions and Weight |
| Weight |
72 Kg (158 Ib) |
| Length without shank adapter |
694 – 702 mm |
| Length with shank adapter |
779 – 839 mm |
| Overall Width |
200 mm (7.8 inch) |
| Height |
191.5 mm (7.5 inch) |
| Rotation Specs |
| Max. Rotation Speed (RPM) |
100cc (300 rpm), 125cc (300 rpm), 160cc (300 rpm) |
| Oil Flow (I / min) |
100cc (30 I / min), 125cc (37.5 I / min), 160cc (48 I / min) |
| Max. Pressure (bar) |
100cc (175 bar), 125cc (175 bar), 160cc (175 bar) |
| Max. Torque (Nm) |
100cc (251 Nm), 125cc (313 Nm), 160cc (401 Nm) |
| Impact Ratings |
| Max. Output |
6 – 8 kW (8 – 11 hp) |
| Input Range |
16 kW (21 hp) |
| Percussion Flow Range (Max.) |
65 I / min |
| Percussion Pressure Range |
150 bar (2175 psi) |
| Max. Impact Frequency |
65 Hz (3900 bpm) |
| Flushing Flow and Pressure |
| Water Flushing |
20 – 50 I / min |
| Front end Lubricating air Consumption |
300 I / min |
| Overhaul Kits |
| Seal Kit |
|
| 400 Impact Hours Kit |
|
| 800 Impact Hours Kit |
|
| 1600 Impact Hours Kit |
|
| 3200 Impact Hours Kit |
|
| Shank Adapters |
| D45 H25 F |
86758661 |
| D45 R28 F |
86720976 |
| D45 R32 F |
86711421 |
| D45 R32 M |
86711439 |
| D45 R38 M |
86716032 |
With a weight of 72 Kg (158 Ib), it balances upgraded operational flexibility and reinforced structural robustness. Its drill diameter ranges from 80-190 mm, covering large-scale blasting hole requirements for large mining projects. Notably, its 75 kW enhanced hydraulic power delivers consistent, powerful, and energy-efficient impact force. It excels in 2600m deep underground tunnels and large open-pit mines, handling complex rock conditions and harsh environments with ease.
This Hydraulic Drifter undergoes strict factory quality control and enhanced heavy-duty performance testing. It ensures 100% compatibility with Montabert standard and high-performance jumbo rigs. Moreover, it eliminates critical flaws of non-original parts: unstable heavy-duty operation, poor environmental adaptability, and frequent malfunctions. Even in harsh working conditions (high pressure, continuous vibration, heavy dust/wetness), it maintains consistent peak performance.
Its precision-machined structure uses high-strength alloy + upgraded wear-resistant/corrosion-resistant composite materials. This enhanced design ensures faster drilling speed and longer service life—core advantages of the “HC25” upgrade. In addition, the six-layer sealed system + anti-abrasive coating provides superior protection against moisture, dust, and abrasive particles. It extends service life by 40% compared to ordinary drifters.
As an enhanced universal Hydraulic Rock Drill, it features advanced intelligent power management. It maximizes drilling productivity while reducing fuel consumption by 25%. Furthermore, its upgraded hydraulic system ensures smooth operation even under fluctuating heavy loads. This makes it ideal for long-term, large-scale drilling projects in large mining enterprises.
Short delivery time ensures timely equipment replacement or project startup. Competitive pricing offers cost-effective solutions for large mining and construction companies. Importantly, original factory quality assurance guarantees long-term operational stability. It minimizes downtime and project delays, supporting continuous production.
Whether for 2600m deep underground tunnel excavation or coal mine drilling, it delivers reliable, high-output results. For large open-pit quarry blasting, it maintains efficiency in extreme weather (high temperature, heavy rain, freezing cold). Specifically, it adapts to hard rock mines, medium rock tunnels, wet quarries, dusty open-pit sites, and high-pressure underground spaces—meeting diverse drilling needs of large-scale projects.
Non-original drifters often lack heavy-duty capacity, have inconsistent performance, or require frequent maintenance. They lead to extra costs and productivity losses. In contrast, the HC25 Drifter retains structural integrity and enhanced high-efficiency output. Its enhanced universal adaptation, robust design, and low maintenance cost empower your jumbo rigs to operate efficiently, driving profitability in large-scale mining projects.
