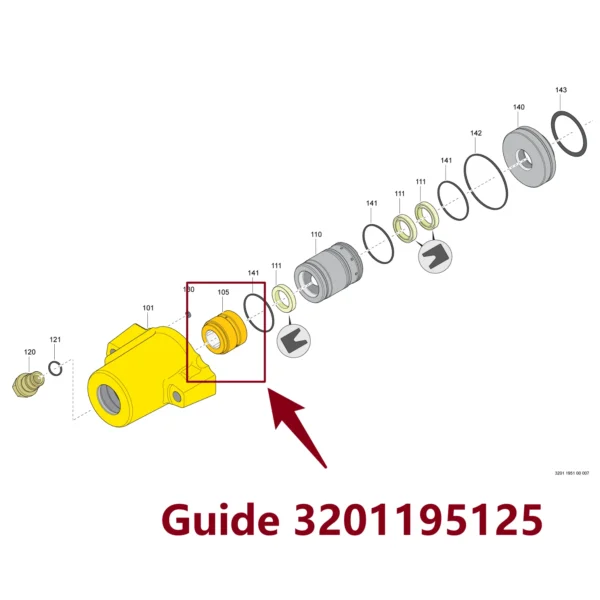

Guide 3201195125 for Atlas Copco/Epiroc RD18U Hydraulic Drifter

RD18U

Product Name: Guide
Product No.: 3201195125
Product Weight: /
Applicable Eqpt: Atlas Copco/Epiroc RD18U Hydraulic Rock Drill / Hydraulic Drifter
Core Advantages: New Original Part, Short delivery time, Competitive price

Why AUG MINING Parts?

Description

Item	Name	Part No.	Qty	Unit	Remarks	Item	Name	Part No.	Qty	Unit
1	Front Part Comp	3201195100	1	Pcs		58	Rot.Chuck,Compl	3201195150	1	Pcs
2	Cover Group		1	Pcs		59	Rot.Chuck		1	Pcs
3	Gear Housing Gr		1	Pcs		60	Rot. Chuck Bear.	3201195152	1	Pcs
4	Interm.Part Grp		1	Pcs		61	Parallel Pin	0102042800	4	Pcs
5	Cylinder Group		1	Pcs		62	Roller Bearing	0509022200	1	Pcs
6	Back Head Group		1	Pcs		63	Roller Bearing	0509012129	1	Pcs
7	Label Set		1	Pcs		64	Shim	3115029701	1	Pcs
8	Shank Adapter		1	Pcs		65	Shim	3115029702	1	Pcs
9	Drill Collar	3115223100	1	Pcs		66	Shim	3115029703	1	Pcs
10	Dome Nut	3115028600	4	Pcs		67	Driver	3201195144	1	Pcs
11	Washer	3115028700	4	Pcs		68	Rot.Ch.Bushing	3201195411	1	Pcs
12	Side Bolt	3115145700	1	Pcs		69	Seal Ring	3115324500	1	Pcs
13	Hydraulic Motor	3115347383	1	Pcs		70	O-Ring	0663212000	1	Pcs
14	Coupling	3115027700	1	Pcs		71	Stud	3201195141	2	Pcs
15	Circlip	0335213000	1	Pcs		72	Stud	3201195142	2	Pcs
16	Gasket	3115032700	1	Pcs		73	Intermed. Part	3201195109	1	Pcs
17	Nut	3115354800	4	Pcs		74	Connect. Plate	3115345500	1	Pcs
18	Accumulator	3201195381	2	Pcs		75	Screw	0211196084	2	Pcs
19	Return Accum.	3201195491	1	Pcs		76	O-Ring	0663210062	2	Pcs
20	Product Graphics	0088001621	1	Pcs		77	Seal Ring	3115298800	2	Pcs
21	Nipple	3176651200	1	Pcs		78	Seal Kit	3201195191	1	Pcs
22	Nipple	3176651400	1	Pcs		79	Seal Kit	3201195192	1	Pcs
23	Front Part	3201195251	1	Pcs		80	Damping Piston	3201195118	1	Pcs
24	Guide	3201195125	1	Pcs		81	Protection Plug	0686911000	1	Pcs
25	Flushing Head	3201195254	1	Pcs		82	Cylinder Compl.	3201195002	1	Pcs
26	Cup Seal	3115519000	3	Pcs		83	Cylinder		1	Pcs
27	Connection	3201195410	1	Pcs		84	Stud	3115116500	1	Pcs
28	O-Ring	0663212600	1	Pcs		85	Guide	3115027600	1	Pcs
29	Seal Ring	3115324500	1	Pcs		86	Seal House Comp	3201195115	1	Pcs
30	Stop Ring	3201195127	1	Pcs		87	Seal Housing		1	Pcs
31	O-Ring	5730008000	3	Pcs		88	Seal Kit	3201195194	2	Pcs
32	O-Ring	0663614500	1	Pcs		89	O-Ring	0663613600	1	Pcs
33	O-Ring	0663214300	1	Pcs		90	Piston Guide	3201195099	1	Pcs
34	Cover Compl.	3201195173	1	Pcs		91	Piston	3201195117	1	Pcs
35	Cover	3201195174	1	Pcs		92	Piston Guide	3201195004	1	Pcs
36	Radial Lip Seal	0666600060	1	Pcs		93	Seal House Comp	3201195106	1	Pcs
37	Circlip	0335217600	1	Pcs		94	Seal Housing		1	Pcs
38	O-Ring	0663615100	1	Pcs		95	Seal Kit	3201195195	2	Pcs
39	Seal Ring	3115324500	1	Pcs		96	O-Ring	0663210577	1	Pcs
40	Pin	0102046000	2	Pcs		97	Valve Piston	3115176500	1	Pcs
41	Screw, Hex Head	0147140803	2	Pcs		98	Valve Cover	3115207704	1	Pcs
42	Gear Housing	3201195176	1	Pcs		99	Valve Cover	3115207605	1	Pcs
43	Gear Housing		1	Pcs		100	Screw, Hex Head	0147143803	4	Pcs
44	Grease Nipple	0544216200	1	Pcs		101	Seal Ring	3115324500	1	Pcs
45	Plug	0686420103	1	Pcs		102	O-Ring	0663210577	1	Pcs
46	Gasket	0653903800	1	Pcs		103	O-Ring	0663210053	1	Pcs
47	Radial Lip Seal	0666600030	1	Pcs		104	O-Ring	0663613401	2	Pcs
48	Circlip	0335217100	1	Pcs		105	O-Ring	0663213301	2	Pcs
49	Washer	3115027300	1	Pcs		106	Back Head	3201195003	1	Pcs
50	Shaft	3115082100	1	Pcs		107	Screw, Hex Head	0147148103	3	Pcs
51	Needle Bearing	0516150401	1	Pcs		108	Plug	0686925026	2	Pcs
52	Washer	3115082300	1	Pcs		109	Plug	0686925027	2	Pcs
53	Gear Wheel	3115027400	1	Pcs
54	Needle Bearing	0516153800	1	Pcs
55	Cup Seal	0665099983	1	Pcs
56	Guide Sleeve	3201195197	1	Pcs
57	O-Ring	0663915001	1	Pcs

Guide 3201195125 is a critical New Original Part for Atlas Copco/Epiroc RD18U Hydraulic Drifter. It meets the strict quality standards of professional hydraulic rock drilling equipment.

This part passes rigorous quality checks to ensure 100% compatibility with Atlas Copco/Epiroc RD18U Hydraulic Rock Drill. It eliminates fitment issues that often come with generic alternatives.

Its precision-machined alloy construction provides stable drill bit guidance. It resists wear, dust, and heavy vibration in harsh mining and construction sites.

Key benefits include short delivery time and competitive pricing. This makes it a cost-effective solution for equipment maintenance and replacement.

Non-Original parts often compromise drilling accuracy. But Guide 3201195125 maintains the Hydraulic Drifter’s original performance. It reduces downtime and operational costs for your equipment.

Whether for routine upkeep or emergency replacement, this part combines reliability, precision, and value. It comes with New Original quality assurance to keep your Atlas Copco/Epiroc RD18U Hydraulic Rock Drill operating at peak efficiency.

1、Quality Assurance?

AUG manufactures all supplied products to meet the technical standards of the target compatible equipment. We guarantee these products fit equipment not modified or repaired to deviate from the original manufacturer’s dimensional standards. AUG independently backs all products with quality assurance, ensuring stable performance in normal use (excluding damage from improper installation, unauthorized modification, or over-rated use).

2、Delivery Time？

Standard accessories (with existing production molds): Typical delivery is 4-6 weeks. We may adjust this based on order quantity and production schedule.
Customized accessories (no existing molds, e.g., parts for specific equipment): Typical delivery is 6-8 weeks. This depends on design confirmation and manufacturing progress.
Spare parts (precision machined components, electronics, fasteners, seals, Hydraulic Components, engines, axles): Delivery time depends on current inventory. Contact our customer service for the latest stock and accurate timelines. E-mail: augmining@gmail.com

3、Shipping and Taxes？

Our standard shipping term is EXW. This excludes import duties, VAT, and other taxes from the destination country/region.
Need AUG to arrange logistics? Provide your detailed delivery address (country, city, postal code, specific location if needed) on the Checkout page. We’ll help deliver goods to your nearest port or designated address. We calculate transportation fees separately and confirm the amount with you in advance.

4、Declaration

On this website, we mention manufacturer names, part numbers, models, and product descriptions only to show our products’ compatible targets, uses, and technical specs. This helps you find and match the products you need. Respective original manufacturers (brands) own the related IP rights (trademarks, copyrights).
AUG exclusively guarantees quality for all products sold here. None of these products are made, authorized, or sourced from OEMs. They have no link to OEM original products.
AUG has no equity, cooperation, authorization, or endorsement ties with any OEMs or brands. We also don’t imply such relationships—whether via logos, product descriptions, or other means. We never exploit original manufacturers’ goodwill for business.
