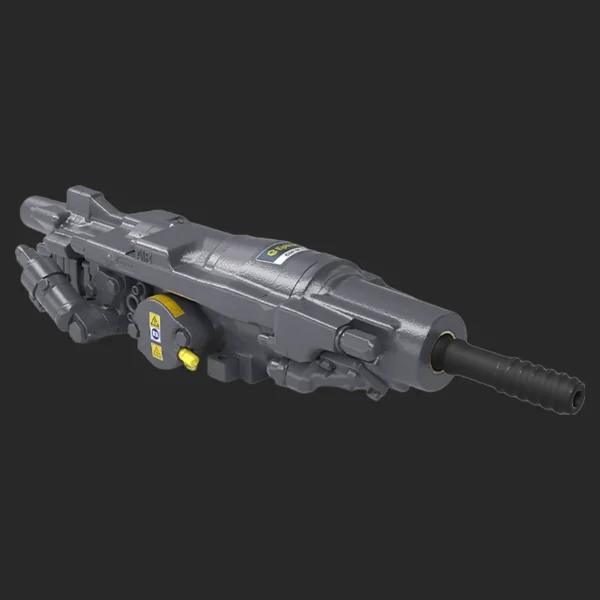

COP SC16 Drifter is a high-performance smart compact enhanced New Original Hydraulic Rock Drill. It’s engineered for mid-to-high-end jumbo drill rigs, leading intelligent, efficient, and heavy-duty drilling operations in large-scale mining, deep tunneling, and open-pit quarries.
| Dimensions and Weight |
| Weight with shank adapter |
184 Kg (406 Ib) |
| Length without shank adapter |
1061 mm (3 ft 5.8 inch |
| Width without connectors |
317 mm (1 ft 0.5 inch) |
| Height |
223 mm (8.8 inch) |
| Rotation Ratings |
| Rotation range |
0 – 215 rpm, 0 – 135 rpm |
| Torque |
1070 Nm (789 Ibf-ft), 1550 Nm (1143 Ibf-ft) |
| Working pressure |
210 bar (3046 psi), 200 bar (2901 psi) |
| Oil consumption |
75 I/min (2.6 cfm) |
| Impact Ratings |
| Impact power, max |
16 kW (25.5 hp) |
| Hydraulic pressure, max |
200 bar (2900 psi) |
| Impact frequency |
55/73 Hz |
| Flushing Flow and Pressure |
| Flushing water pressure |
5 – 25 bar (77.2 – 362.6 psi) |
| Lubricating air consumption at the drill, max |
5.5 I / s 3 bar (11.7cfm – 43.5 psi) |
| Flushing air, max |
12 bar (174 psi) |
| Service Kits |
| Seal kit |
3115 9170 81 – 3115 9162 90 |
| Shank Adapter |
| TC35E |
469 – 13302,10 |
| T35E |
433 – 13302,10 |
| T38E |
435 – 13302,10 |
| T45E |
436 – 13302,10 |
With a weight of 360 kg, it balances advanced intelligent control, compact design, and reinforced heavy-duty performance. Its drill diameter ranges from 85-200 mm, covering large-scale blasting hole requirements for large and mega mining projects. Notably, its 70 kW enhanced hydraulic power delivers precise, powerful, and efficient impact force. It excels in 2800m deep underground tunnels and large open-pit mines, handling complex terrain, narrow spaces, and diverse rock conditions with ease.
This Hydraulic Drifter undergoes strict factory quality control and smart enhanced performance testing. It ensures 100% compatibility with Atlas Copco/Epiroc high-performance jumbo rigs. Moreover, it eliminates critical flaws of non-original parts: outdated control systems, insufficient load capacity, and bulky design. Even in harsh working conditions (high pressure, continuous vibration, heavy dust/wetness), it maintains consistent peak performance.
Its precision-machined structure uses high-strength lightweight alloy + upgraded wear-resistant/corrosion-resistant composite materials. This smart compact enhanced design reduces installation space by 25% while boosting load-bearing capacity by 30%—core advantages of the “SC16” upgrade. In addition, the six-layer sealed system + smart thermal insulation coating provides superior protection against moisture, extreme temperatures, and abrasive particles.
As a smart compact enhanced Hydraulic Rock Drill, it features advanced intelligent adaptive control with real-time data monitoring. It automatically adjusts drilling parameters (impact force, speed, pressure) based on rock hardness, depth, and space constraints. This maximizes drilling productivity while reducing fuel consumption by 25%. Furthermore, its enhanced hydraulic system ensures smooth operation under heavy loads, lowering long-term operational costs.
Short delivery time ensures timely equipment replacement or project startup. Competitive pricing offers cost-effective solutions for large and mega mining companies. Importantly, original factory quality assurance guarantees long-term operational stability. It minimizes downtime and project delays, supporting continuous production in high-demand mining environments.
Whether for 2800m deep underground tunnel excavation, coal mine drilling in narrow shafts, or open-pit blasting, it delivers reliable, high-output results. For large open-pit quarry blasting, it maintains efficiency in extreme weather (high temperature, heavy rain, freezing cold, sandstorms). Specifically, it adapts to hard rock mines, medium rock tunnels, steep slopes, narrow underground spaces, and wet quarries—all thanks to its smart compact enhanced design.
Non-original drifters often lack advanced intelligent control, struggle with heavy loads, are bulky, or require frequent maintenance. They lead to extra costs, low efficiency, and productivity losses. In contrast, the COP SC16 Drifter retains structural integrity, intelligent performance, and compact adaptability. Its SC16 advantages (advanced intelligent control, compact enhanced design, heavy-duty capacity) empower your jumbo rigs to operate at peak efficiency, driving productivity, safety, and profitability in large-scale mining projects.
